Description

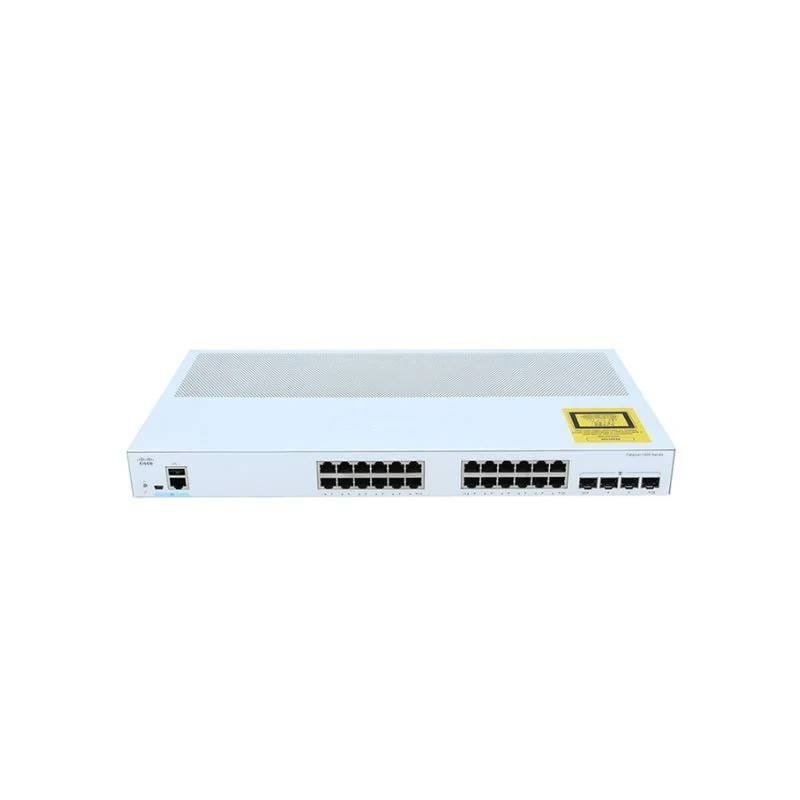

Cisco C1000FE-24T-4G-L Overview
The Cisco C1000FE-24T-4G-L is a versatile and reliable network switch belonging to the Catalyst 1000 series, specifically designed for small businesses and branch offices. Its robust features and compact design make it ideal for environments where space and budget are limited, yet high performance and efficiency are essential.
Quick Spec
| Brand | Cisco |
| Model | C1000FE-24T-4G-L |
| Ports | 24 Fast Ethernet Ports |
| Uplink Ports | 2x 1G SFP, 2x 1G Combo |
| Series | Catalyst 1000 |
Product Features
- ?Integrated support for data, voice, and video services
- Enhanced security features including access control lists and threat defense
- ?Energy-efficient design to reduce operational costs
- ?Web-based configuration interface for easy management
- ?Layer 2 advanced switching capabilities
Product Applications
- ?Ideal for small business office networking
- ?Suitable for branch office connectivity
- ?Perfect for educational institutions requiring network expansion
Supported Options
| Option | Model |
| SFP Transceiver | GLC-LH-SM |
| Rack Mount Kit | CMP-RACK-MNT |
| Power Supply | PD-9001GR-AC |
Cisco C1000FE-24T-4G-L Specification
Cisco C1000FE-24T-4G-L Specifications |
|
| Console ports | |
| RJ-45 Ethernet | 1 |
| SUSB-A port for storage and Bluetooth console | 1 |
| Memory and processor | |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Performance | |
| Forwarding bandwidth | FE: 6.4 Gbps
1G: 28 Gbps 10G: 64 Gbps |
| Switching bandwidth | FE: 12.8 Gbps
1G: 56 Gbps 10G: 128 Gbps |
| Forwarding rate (64?byte L3 packets) |
FE: 9.52 Mpps
1G: 41.67 Mpps 10G: 95.23 Mpps |
| Unicast MAC addresses | 16000 |
| Jumbo Ethernet frame | 10,240 bytes |
| MTBF in hours (data) | 2,026,793 |
| MTBF in hours (PoE) | 698,220 |
| MTBF in hours (Full?PoE) | 698,220 |
| Environmental | |
| Operating temperature | Sea level: -5 to 50??C*
Up to 5,000ft (1500 m): -5 to 45??C Up to 10,000 (3000 m): -5 to 40??C |
| Storage temperature | -13 to 158??F (-25 to 70??C) |
| Operating altitude | 10,000 ft (3,000m) |
| Storage altitude |
15,000 ft (4500m) |
| Storage relative humidity |
5% to 95% at 65 deg C (non-condensing) |
