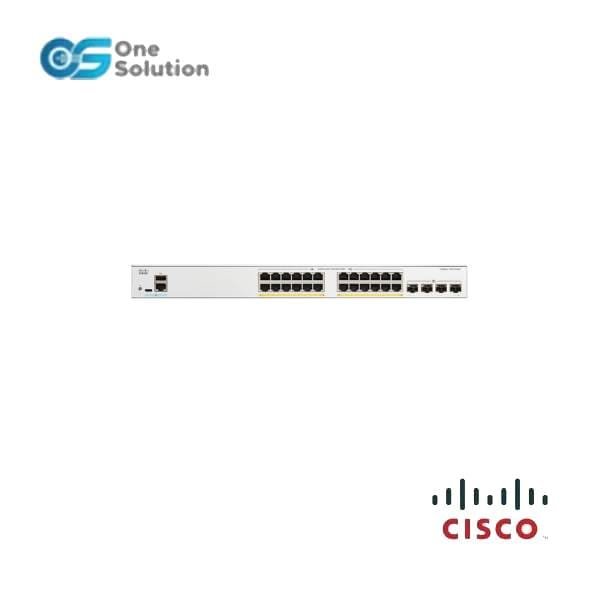

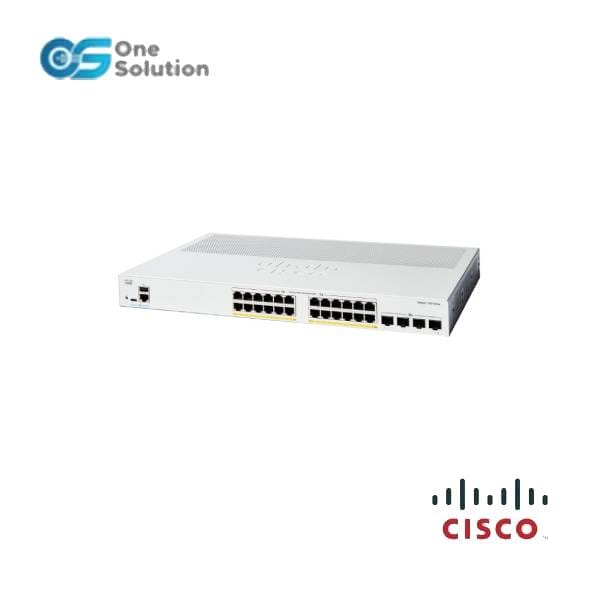

Name: Cisco C1300-24P-4X - Cisco Catalyst 1300 Series Switches
Brand: HPEServers PH
SKU: 1924
Availability: InStock
Rating: 5 (1 reviews)

Description

C1300-24P-4X Overview

The Cisco C1300-24P-4X is a high-performance switch designed to deliver enterprise-grade connectivity with its 24x 10/100/1000 PoE+ ports. This switch is ideal for businesses requiring robust security, scalability, and efficient power management for their network. It leverages Cisco s premium technology, bringing reliability and advanced features to any network deployment.

Quick Spec

Brand	Cisco
Model	C1300-24P-4X
Ports	24x 10/100/1000 POE+
Uplink Ports	4x 10G SFP+
PoE Budget	370W

Product Features

?24 Gigabit Ethernet PoE+ ports to support a variety of devices
?4 x 10G SFP+ uplink ports for high-speed connectivity
?370W POE power budget to support power-hungry devices
?Advanced security features including port security and ACLs
?Scalability for growing network demands with stackable design

Product Applications

?Powering IP cameras, VoIP phones, and wireless access points in enterprise environments
?Deploying in small and medium-sized businesses requiring reliable and secure network connectivity
?Supporting campus network deployments with high-speed uplinks and robust PoE capabilities

C1300-24P-4X Specification

C1300-24P-4X?Specifications
Capacity in millions of packets per second (mpps) (64-byte packets)	95.23
Switching capacity in gigabits per second (Gbps)	128.0
Power dedicated to PoE	195W
Number of ports that support PoE	24
System power consumption	110V=31.4W 220V=31.8W
Power consumption (with PoE)	110V=235.8W 220V=232.9W
Heat dissipation (BTU/hr)	804.1
Idle Power	110V=13.9W 220V=14.8W
Total system ports	24 x Gigabit Ethernet + 4 x 10G
RJ-45 ports	24 x Gigabit Ethernet
Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP])	4 x SFP+
Packet buffer	1.5 MB
Unit dimensions (W x D x H)	445 x 299 x 44 mm (17.5 x 11.77 x 1.73 in)
Unit weight	3.95 kg (8.70 lb)
Fan (number)	Fanless
Acoustic noise	?C
MTBF at 25??C (hours)	337,232
