Description

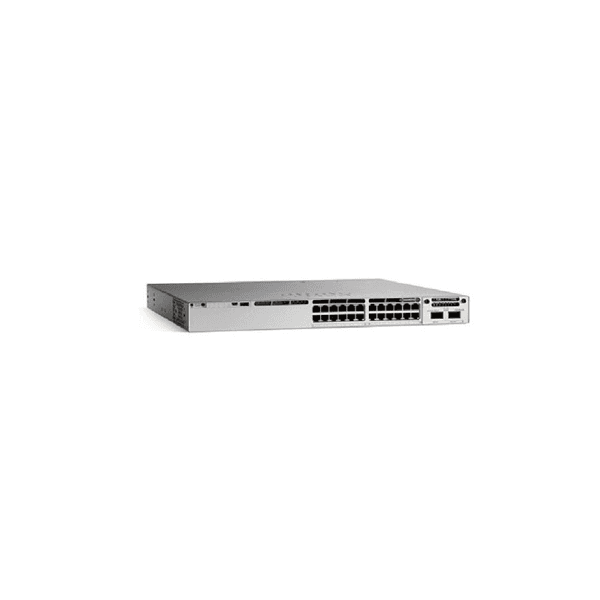

Cisco C9300-24H-A Overview
The Cisco C9300-24H-A, part of the Catalyst 9300 series, is a next-generation enterprise-class switch built for security, IoT, and cloud applications. This model is designed to provide high performance, enhanced security features, and advanced networking among its class, making it an ideal choice for digitally transforming businesses.
Quick Spec
| Brand | Cisco |
| Model | C9300-24H-A |
| Series | Catalyst 9300 |
| Ports | 24 x 10G |
| Uplink Interfaces | 4 x 40G |
Product Features
- ?Advanced Layer 3 switching capabilities with intelligent traffic management.
- ?Enhanced security with features such as TrustSec, MACsec encryption, and more.
- ?High scalability supporting up to 1 Tbps of switch stacking throughput.
- ?Integrated software-defined access, ensuring simplicity in network automation.
- ?Robust IoT and Cloud readiness for modern enterprise demands.
Product Applications
- ?Enterprise campus networks requiring high-speed and secure data transmission.
- ?Data center environments focusing on efficient resource management and scalability.
- ?Collaborative spaces needing seamless integration with IoT devices and cloud services.
C9300-24H-A Specification
C9300-24H-A Specifications |
|
| Brand | Cisco |
| Series | Catalyst 9300 |
| Model | C9300-24H-A |
| Ports | 24 x 10 Gigabit Ethernet |
| Uplink Interfaces | Network Modules with 8 x 10G, 2 x 20G, 2 x 40G uplinks |
| Forwarding Rate | Up to 476.19 Mpps |
| Switching Capacity | 600 Gbps |
| Maximum Stack Members | 8 |
| DRAM | 8 GB |
| Flash Memory | 16 GB |
| Power Supply | Dual redundant, modular power supplies |
| Fan | Field-replaceable, variable-speed fan |
| Stacking Bandwidth | 480 Gbps |
| Dimensions | 1.73 x 17.5 x 17.5 in. (4.4 x 44.5 x 44.5 cm) |
| Operating Temperature | 32??F to 113??F (0??C to 45??C) |
| Storage Temperature | -40??F to 158??F (-40??C to 70??C) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Power Consumption | Max 250W |
| Rack Units (RU) | 1 RU |
| Warranty | Limited lifetime hardware warranty |
| Compliance | Energy Efficient Ethernet (EEE), IEEE 802.3az |
