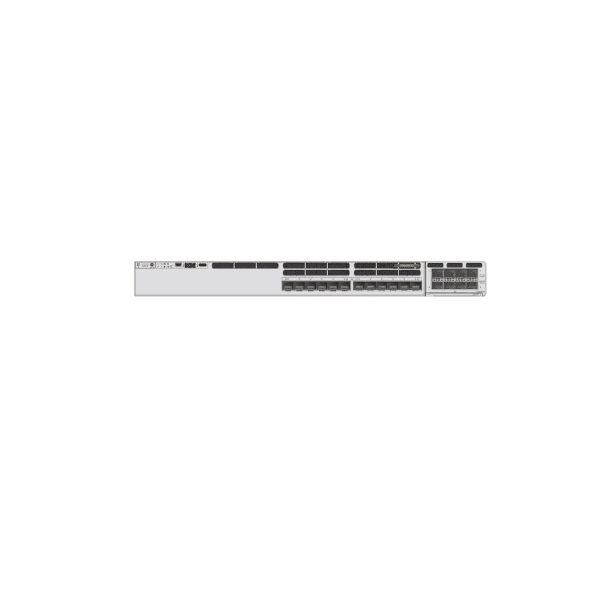

Cisco C9300X-12Y-A Overview
The C9300X-12Y-A is a Catalyst 9300 switch model by Cisco. This model comes with 12 ports of 25G/10G/1G SFP28 and modular uplinks. It is part of the Cisco Catalyst 9300 Series, which provides flexible deployment options, including small to medium-sized businesses, enterprise branches, and campuses. The switch includes advanced security features and is powered by Cisco’s IOS XE software.
Quick Spec
Table 1 shows the quick spec of the C9300X-12Y-A.
| Product Code | C9300X-12Y-A |
| Manufacturer | Cisco |
| Type | Network Switch |
| Ports | 12 x 25G/10G/1G SFP28 |
| Uplinks | Modular |
| Software | Network Advantage |
Product Features
- Flexibility: 12 ports of 25G/10G/1G SFP28 and modular uplinks provide a variety of connectivity options.
- ?Security: Advanced security features such as secure boot, Trustworthy Systems, MACsec, and other capabilities.
- Efficiency: Supports Energy Efficient Ethernet (EEE) and lower power consumption.
- Scalability: Designed to scale as network demands grow, with high-density stacking capabilities.
Product Applications
- Small to Medium-Sized Businesses: Provides secure and scalable connectivity options.
- ?Enterprise Branches: Delivers enterprise-grade performance and security.
- ?Campuses: Handles high-density deployments with advanced security features.
C9300X-12Y-A Specification
C9300X-12Y-A Specifications |
|
| General | |
| Device Type | Switch – 12 ports – L3 – managed – stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 12 x 1/10/25 Gigabit SFP28 |
| Performance | Switching capacity: 1000 Gbps
Switching capacity with stacking: 2000 Gbps Forwarding rate: 744.04 Mpps Forwarding rate with stacking: 1488 Mpps |
| Capacity | IPv4 routing table entries: 39000
Flexible NetFlow entries: 64000 Direct IPv4 routes: 24000 Indirect IPv4 routes: 15000 IPv6 routing table entries: 19500 VLAN IDs: 4094 Switched virtual interfaces (SVIs): 1000 Multicast routing flow table: 8000 QoS scale entries: 4000 ACL scale entries: 5000 PVST instances: 300 STP Virtual Ports for PVST: 13000 STP Virtual Ports for MST: 13000 Routed ports: 448 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Features | DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration, Cisco StackWise-1T technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| RAM | 16 GB |
| Flash Memory | 16 GB |
| Status Indicators | Status |
| Expansion / Connectivity | |
| Interfaces | 24 x 1/10/25GBase-X SFP28 |
| Power | |
| Power Device | Internal power supply |
| Power Provided | 715 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 16.1 in |
| Height | 1.73 in |
| Weight | 15.0 Pounds |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – replacement – lifetime – response time: next business day | Technical support – consulting – 90 days |
| Environmental Parameters | |
| Min Operating Temperature | 23 ??F |
| Max Operating Temperature | 113 ??F |
| Humidity Range Operating | 5 – 90% (non-condensing) |
| Min Storage Temperature | -40 ??F |
| Max Storage Temperature | 158 ??F |
| Humidity Range Storage | 5 – 90% (non-condensing) |
