Cisco C9300X-48TX-A – Cisco Catalyst 9300 switches Series

Cisco C9300X-48TX-A

Catalyst 9300

The Cisco C9300X-48TX-A is a next-generation, enterprise-class switch part of the Catalyst 9300 series. It is designed to provide powerful networking solutions with high performance, security, and efficiency, Centralising the network

Categories: , Brand:

Description

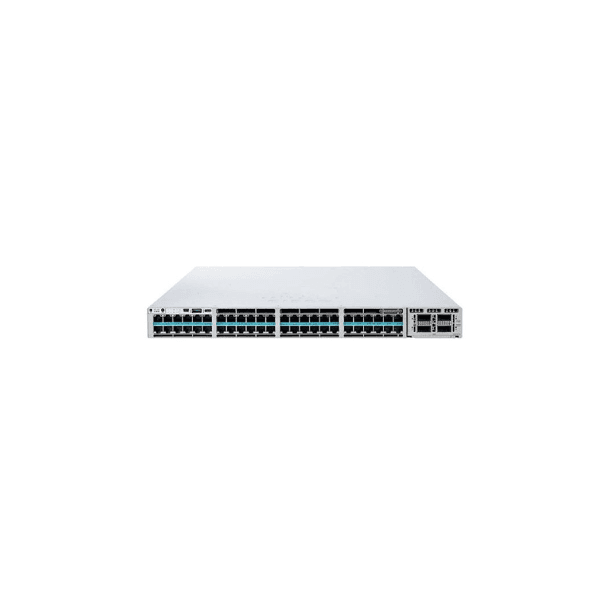

Cisco C9300X-48TX-A Overview

The Cisco C9300X-48TX-A is a next-generation, enterprise-class switch part of the Catalyst 9300 series. It is designed to provide powerful networking solutions with high performance, security, and efficiency, centralising the network management for simplified operations. Suitable for demanding business environments, this switch ensures reliable, secure, and scalable connectivity.

Quick Spec

Model Cisco C9300X-48TX-A
Series Catalyst 9300
Ports 48x 10/100/1000Base-T ports
Uplinks 4x 10G SFP+
Switching Capacity 640 Gbps

Product Features

  • ?High-density performance with 48 Gigabit Ethernet ports.
  • ?Advanced security features for threat defense.
  • ?Enhanced software image (Network Advantage).
  • ?Stackable up to 8 units for expanded capabilities.
  • Quality of Service (QoS) for better bandwidth management.

Product Applications

  • Enterprise campus and core deployments requiring high-density, high-performance connectivity.
  • ?Medium to large-sized data centers needing enhanced security and simplified operations.
  • ?Service provider networks aiming for scalable and efficient network management.

Supported Options

Accessory Model
Power Supply C9300X-PWR-715WAC
Network Module C9300X-NM-8X
Stacking Module C9300X-STACK-KIT



C9300X-48TX-A Specification



C9300X-48TX-A Specifications

Brand Cisco
Series Catalyst 9300
Model C9300X-48TX-A
Ports 48 x 10G SFP+
Uplink 4 x 40G/Slot Uplinks
Switching Capacity 640 Gbps
Forwarding Rate 476.19 Mpps
Stacking Bandwidth 480 Gbps
DRAM 16 GB
Flash Memory 16 GB
Power Supply 715W AC
Fan Field-Replaceable
Dimensions (H x W x D) 1.73 x 17.5 x 19 inches
Weight 14.6 Pounds
Operating Temperature 32 to 104??F (0 to 40??C)
Storage Temperature -40 to 158??F (-40 to 70??C)
Operating Humidity 5% to 95% (non-condensing)
Max Power Consumption 275W
MTBF 206,480 hours
Mean Time to Repair (MTTR) 2 hours
Software IOS XE
Layer Layer 2 and Layer 3
