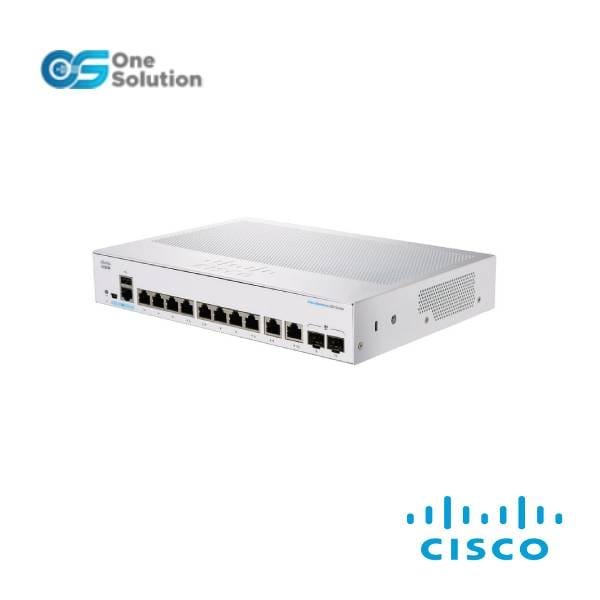

Name: Cisco CBS350-8S-E-2G - Cisco Business 350 Series Managed Switches
Brand: HPEServers PH
SKU: 1714
Availability: InStock
Rating: 5 (1 reviews)

Description

Cisco CBS350-8S-E-2G Overview

From connectivity to cloud applications, networking plays a crucial role in every business journey. Reliability, security, and affordability continue to be top of mind while ongoing management and operations add additional complexity that take time and resources.

Cisco Business is a portfolio of affordable wireless access points, switches and routers designed and built for Small Business. Managed through Cisco Business Dashboard and mobile app, the portfolio provides a simple and reliable experience. Cisco Business Dashboard simplifies traditional challenges in deploying and managing business networks by automating the deployment, monitoring and lifecycle management of the network.

Product Features

Ease of Management and Deployment
?High Reliability and Resiliency
?Strong Security
?Power over Ethernet
IPv6 Support
?Advanced Layer 3 Traffic Management
True stacking
Compact Design
?Power Efficiency
?Peace of Mind and Investment Protection

Bussiness Applications

Secure office connectivity: Cisco Business 350 Series Switches can simply and securely connect employees working in small offices with each other and with all of the servers, printers, and other networking devices they use. High performance and reliable connectivity help speed file transfers and data processing, improve network uptime, and keep your employees connected and productive.
???Unified communications: As a managed network solution, the Cisco Business 350 Series Switches provide the performance and advanced traffic-handling intelligence you need to deliver all communications and data over a single network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for businesses. Cisco Business 350 Series Switches have been rigorously tested to help ensure easy integration and full compatibility with these and other products, providing a complete business solution.
?Highly secure guest connectivity. Cisco Business 350 Series Switches let you extend highly secure network connectivity to guests in a variety of settings, such as a hotel, an office waiting room, or any other area open to nonemployee users. Using powerful but easy-to-configure security and traffic segmentation capabilities, you can isolate your vital business traffic from guest services and keep guests?? network sessions private from each other.

Quick Spec

Table 1 shows the quick spec.

Model	Cisco CBS350-8S-E-2G
Product Type	Ethernet Switch
Manageable	Yes
Ethernet Technology	Gigabit Ethernet
Number of Total Expansion Slots	10
Product Family	Business 350
Stack Port	Yes

Accessories and license upgrade PIDs

Product number	Description
SD-IE-1GB=	1 GB Ruggedized SD memory card (must be ordered, not included by default)
STK-RACK-DINRAIL=	19 in. DIN Rail mount kit
IE-LICENSE-SPARE	Spare license for software upgrade (L2 to L3 features, MRP ring, etc)
L-IE2000-L-B=	IE2000 LAN Lite to LAN Base e-license
L-IE2000-B-E=	IE2000 LAN Base to Enhanced LAN Base e-license
LIC-IE2000-IP-L=	IE2000 LAN Base or Enhanced LAN Base to IPLite e-license
LIC-IE2000-L-IP=	IE2000 LAN Lite to IPLite e-license
LIC-MRP-MANAGER=	MRP Ring Manager license
LIC-MRP-Client=	MRP Ring Client license
Wallmount-IE2k-04=	Wall mount kit accessory for IE2000 4-ports downlink PID
Wallmount-IE2k-08=	Wall mount kit accessory for IE2000 8-ports downlink PID
Wallmount-IE2k-16=	Wall mount kit accessory for IE2000 16-ports downlink PID

Cisco CBS350-8S-E-2G Specification

Cisco CBS350-8S-E-2G Specifications
Capacity in Millions of Packets per Second (mpps) (64-byte packets)	130.94
Switching Capacity in Gigabits per Second (Gbps)	176.0
Spanning Tree Protocol	Standard 802.1d Spanning Tree support Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported
Port grouping/link aggregation	Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) ????Up to 8 groups ????Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN	Support for up to 4,094 VLANs simultaneously Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN Management VLAN Private VLAN with promiscuous, isolated, and community port Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN, unauthenticated VLAN Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication CPE VLAN
IPv4 routing	Wirespeed routing of IPv4 packets Up to 990 static routes and up to 128 IP interfaces
IPv6 routing	Wirespeed routing of IPv6 packets
Hardware stacking	Up to 4 units in a stack. Up to 200 ports managed as a single system with hardware failover Stacking is supported on the following models CBS350-24T-4X, CBS350-24P-4X, CBS350-24FP-4X, CBS350-48T-4X, CBS350-48P-4X, CBS350-48FP-4X CBS350-8MP-2X, CBS350-24MGP-4X, CBS350-12NP-4X, CBS350-24NGP-4X, CBS350-48NGP-4X CBS350-8XT, CBS350-12XS, CBS350-12XT, CBS350-16XTS, CBS350-24XS, CBS350-24XT, CBS350-24XTS, CBS350-48XT-4X
System Power Consumption	110V=61.53W 220V=60.73W
Power Consumption (with?PoE)	110V=471.90W 220V=463.32W
Heat Dissipation (BTU/hr)	1,610.19
Flash	256 MB
CPU	800 MHz ARM
DRAM	512 MB
Packet Buffer	3 MB
Unit Dimensions	445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in)
Unit Weight	5.43 kg (11.97 lb)
