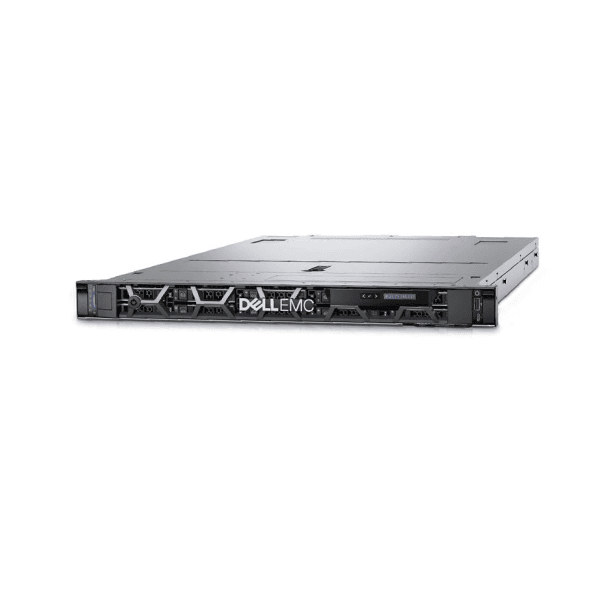

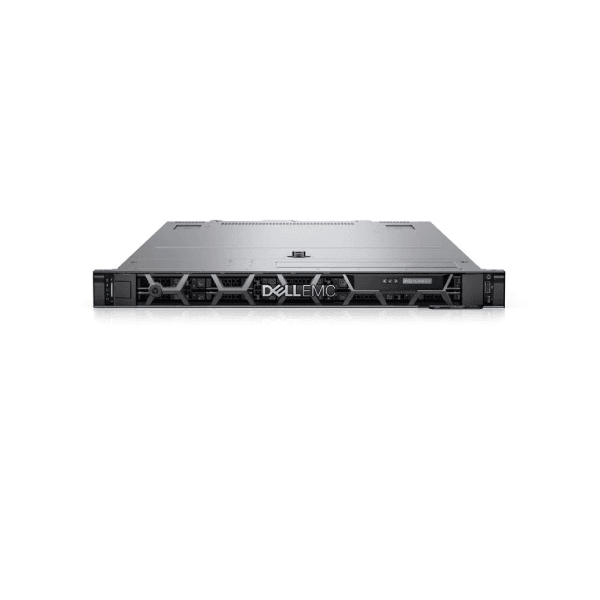

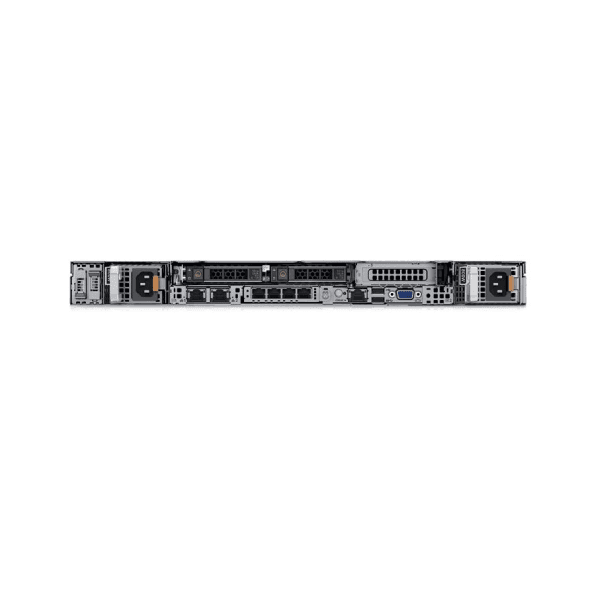

Name: Dell PowerEdge R650 8SFF Rack Server
Brand: HPEServers PH
SKU: 1228
Availability: InStock
Rating: 5 (1 reviews)

Description

Dell PowerEdge R650 8SFF? Overview

The Dell EMC PowerEdge R650 enterprise server features 3rd Generation Intel Xeon Scalable processors designed to optimize workload performance and data center density.

Table 1 shows the 3 configuration of?Dell R650 8SFF Server.

Configuration	Processor	Memory	Hard Drive	Power Supply
Dell 1U R650 1*4310 8SFF?Server	1?* Intel Xeon 4310	1?* 32G	1*1.2T SAS 10K	1*800W
Dell 1U R650 1*5317?8SFF?Server	1?* Intel Xeon 5317	1?* 32G	1*1.2T SAS 10K	1*800W
Dell 1U R650 1*6330?8SFF?Server	1?* Intel Xeon 6330	1?* 32G	1*1.2T SAS 10K	1*800W

Quick Spec

Table 2 shows the quick spec of R650 Dell server.

Product Code	Dell R650 8SFF Server
Processor	Up to two 3rd Generation Intel Xeon Scalable processors with up to 24 cores per processor
Operating System	(Dell Technologies recommends Windows 11 Pro for business) Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Chipset	IntelC620A chipset
Accelerators	Up to three 75 W single-width GPU
Memory	DIMM Speed Up to 3200 MT/s Memory Type RDIMM LRDIMM NVDIMM Intel Persistent Memory 200 series (BPS) Memory Module Slots 32 DDR4 DIMM slots Maximum RAM RDIMM 2 TB LRDIMM 4TB NVDIMM 128 GB Intel Persistent Memory 200 series (BPS) 8TB
Storage	Front Bays Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB Rear bays Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB

Product Details

The Dell EMC PowerEdge R650, powered by 3rd Generation Intel Xeon Scalable processors, is designed to optimize workloads performance and data center density.

Optimal performance, high scalability, and data center density for demanding workloads

The dual-socket/1U PowerEdge R650 is the ideal rack server to address performance, high scalability, and density.

* Supports 8 channels per CPU, up to 32 DDR4 DIMMs at 3200 MT/s DIMM speed

* Address substantial throughput improvements with PCIe Gen 4 and up to 10 NVMe drives

* Ideal for traditional corporate IT, database and analytics, VDI, and AI/ML and Inferencing

* Optional Direct Liquid Cooling support to address high wattage processors

Dell R650 8SFF Server Specification

Dell R650 8SFF Server?Specification
Processor	Up to two 3rd Generation Intel? Xeon? Scalable processors with up to 24 cores per processor
Operating System	(Dell Technologies recommends Windows 11 Pro for business) Canonical? Ubuntu? Server LTS Citrix? Hypervisor? Microsoft? Windows Server? with Hyper-V Red Hat? Enterprise Linux SUSE? Linux Enterprise Server VMware? ESXi?
Chipset	Intel?C620A chipset
Accelerators	Up to three 75 W single-width GPU
Memory	DIMM Speed Up to 3200 MT/s Memory Type RDIMM LRDIMM NVDIMM Intel? Persistent Memory 200 series (BPS) Memory Module Slots 32 DDR4 DIMM slots Maximum RAM RDIMM 2 TB LRDIMM 4TB NVDIMM 128 GB Intel? Persistent Memory 200 series (BPS) 8TB
Storage	Front Bays Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB Rear bays Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB
Storage Controllers	Internal Controllers PERC H745, H345, HBA355I, H755, H755N External Controllers PERC H840, HBA355E Software RAID S150 Internal Boot Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Internal Dual SD Module or Internal USB 3.0
Security ?	Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management	Embedded / At-the-Server iDRAC9 iDRAC Service Module iDRAC Direct Quick Sync 2 wireless module Consoles OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin Mobility OpenManage Mobile Tools iDRAC RESTful API with Redfish IPMI RACADM CLI System Update Utility Update Catalogs OpenManage Integrations BMC? Truesight Microsoft? System Center Red Hat? Ansible? Modules VMware? vCenter and vRealize Operations Manager OpenManage connections IBM Tivoli? Netcool/OMNIbus IBM Tivoli? Network Manager IP Edition Micro Focus? Operations Manager Nagios Core Nagios? XI
Power Supplies	800 W Platinum AC/240 V Mixed Mode 1100 W Titanium AC/240 V Mixed Mode 1400 W Platinum AC/240 V Mixed Mode 1100 W DC -48 – 60 V Hot plug power supplies with full redundancy option
Ports	Network Options 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional) Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 2 x RJ-45 1 x VGA (optional for liquid cooling configuration) Internal Ports 1 x USB 3.0 (optional)
Slots ?	Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAPI I/O option) or 2 x PCIe (Gen4) full height slots Video Card 1 x VGA (optional for liquid cooling configuration)
Bezel	Optional LCD bezel or security bezel
Form Factor	1U rack server
Dimensions & Weight	Height 42.8 mm (1.68 inches) Width 482 mm (18.97 inches) Depth 809 mm (31.85 inches) ?C without bezel 822.84 mm (32.39 inches) ?C with bezel Weight 21.2 kg (46.7 lbs)
Rack Support	ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.
Recommended Support	Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
