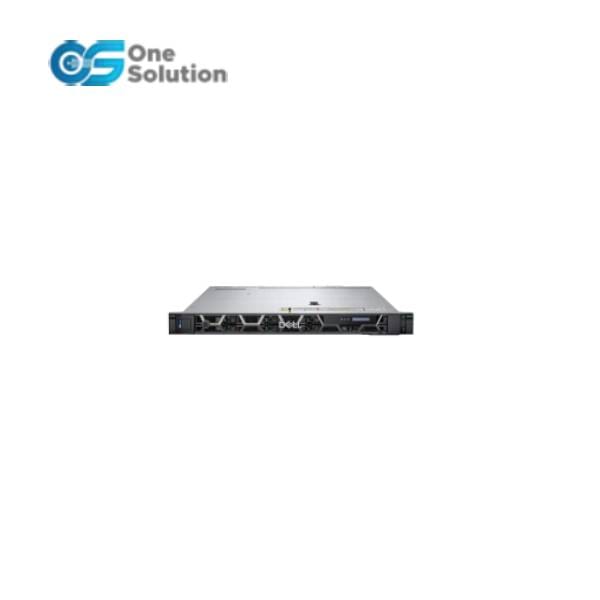

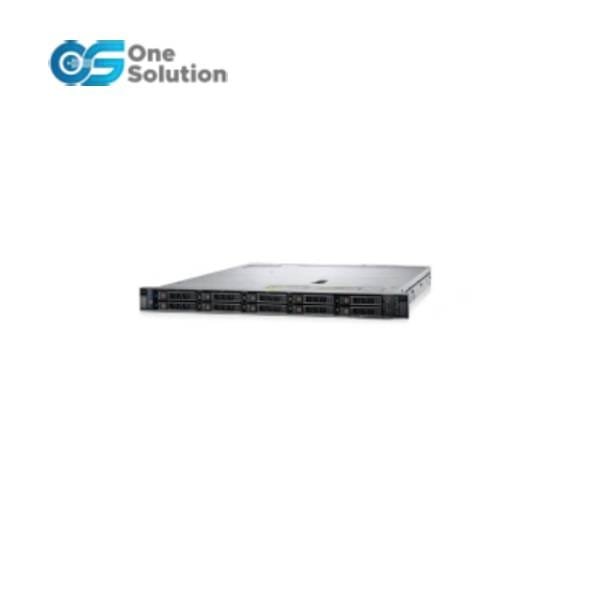

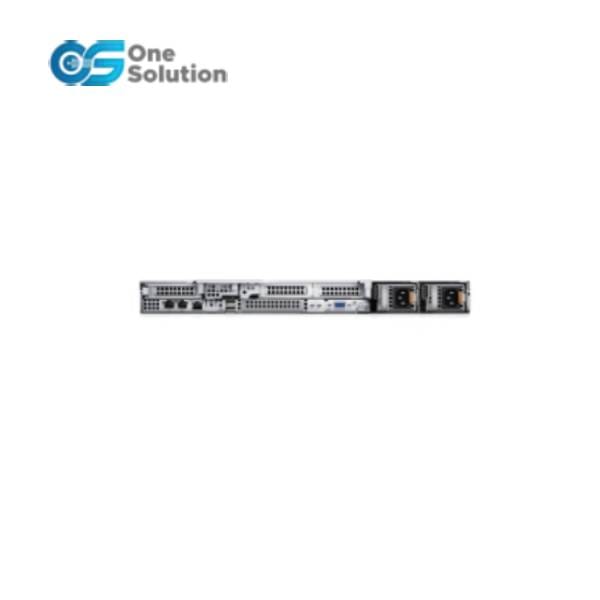

Dell PowerEdge R650xs
The Dell EMC PowerEdge R650xs
offers compelling performance, highspeed memory and capacity, I/O
bandwidth and storage to address data
requirements ?C Ideal for:
? Virtualization/Cloud
? Scale-out Database
? High-Performance ComputeInnovate at scale with challenging and emerging workloads
The new Dell EMC PowerEdge R650xs is a 1U, dual-socket server that??s purpose-built to maximize value with
distinctive feature sets for scale-out environments. With it, you can:
? Add additional power and cores: Up to two 3rd generation Intel? Xeon? Scalable processors, up to 32 cores per
socket
? Accelerate in-memory workloads: Up to 16 DDR4 RDIMMS, 3200 MT/sec
? Improve throughput, reduce latency: Up to 3 PCIe Gen4 slots, OCP 3.0 for network cards, and SNAP I/O support
? Include flexible storage: Up to 4x 3.5?? SAS/SATA HDDs or SSDs; or up to 10x 2.5?? SAS/SATA HDDs or SSDs,
and 10 NVMe drives
? Enable virtualization, medium density VM or VDI, and High-Performance Compute node workloads
The Dell EMC PowerEdge R650xs
offers compelling performance, highspeed memory and capacity, I/O
bandwidth and storage to address data
requirements ?C Ideal for:
? Virtualization/Cloud
? Scale-out Database
? High-Performance ComputeInnovate at scale with challenging and emerging workloads
The new Dell EMC PowerEdge R650xs is a 1U, dual-socket server that??s purpose-built to maximize value with
distinctive feature sets for scale-out environments. With it, you can:
? Add additional power and cores: Up to two 3rd generation Intel? Xeon? Scalable processors, up to 32 cores per
socket
? Accelerate in-memory workloads: Up to 16 DDR4 RDIMMS, 3200 MT/sec
? Improve throughput, reduce latency: Up to 3 PCIe Gen4 slots, OCP 3.0 for network cards, and SNAP I/O support
? Include flexible storage: Up to 4x 3.5?? SAS/SATA HDDs or SSDs; or up to 10x 2.5?? SAS/SATA HDDs or SSDs,
and 10 NVMe drives
? Enable virtualization, medium density VM or VDI, and High-Performance Compute node workloads
PowerEdge R650xs Specification
PowerEdge R650xs Specification |
|
| Processor | Up to two 3rd Generation Intel??Xeon??Scalable processors with up to 32 cores per processor Air cooled |
| Operating System | Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V RedHat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Memory (RAM) | DIMM Speed Up to 3200 MT/sMemory Type RDIMMMemory Module Slots 16 DDR4 DIMM slots Maximum RAM |
| Storage | Front Bays 0 drive bay Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 76.8 TBRear bays Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 15.36 TB |
| Storage Controllers | Internal Controllers PERC H355, H345, PERC H745, PERC H755, PERC H755N, HBA355IExternal Controllers PERC H840, HBA355ESoftware RAID S150 Internal Boot |
| Power Supplies | 600W Platinum 100?C240 VAC or 240 VDC, hot swap redundant 700W Titanium 200?C240 VAC or 240 VDC, hot swap redundant 800W Platinum 100?C240 VAC or 240 VDC, hot swap redundant 1100W DC/-48?C(-60) V 1100W Titanium 100?C240 VAC or 240 VDC, hot swap redundant 1400W Platinum 100?C240 VAC or 240 VDC, hot swap redundant 1800W Titanium 200?C240 VAC or 240 VDC, hot swap redundant |
| Ports |
Network Options Front Ports Rear Ports Internal Ports |
| Slots | PCIe Up to 3 x PCIe Gen4 slotsVideo Card 1 x VGA |
| Bezel | Optional LCD bezel or security bezel |
| Form Factor | 1U rack server |
| Dimensions and Weight | Height 86.8 mm (3.41 inches)Width 482.0 mm (18.97 inches)Depth 734.95 mm (28.92 inches) ?C without bezel 748.79 mm (29.47 inches) ?C with bezel Weight |
| Rack Support |
ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks. |
