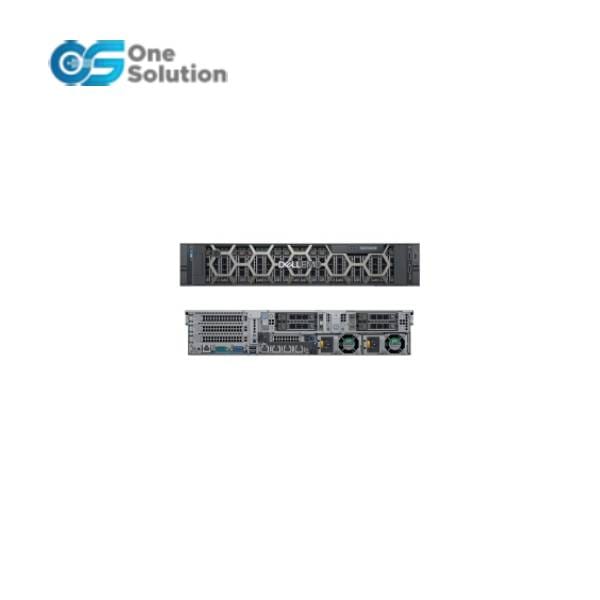

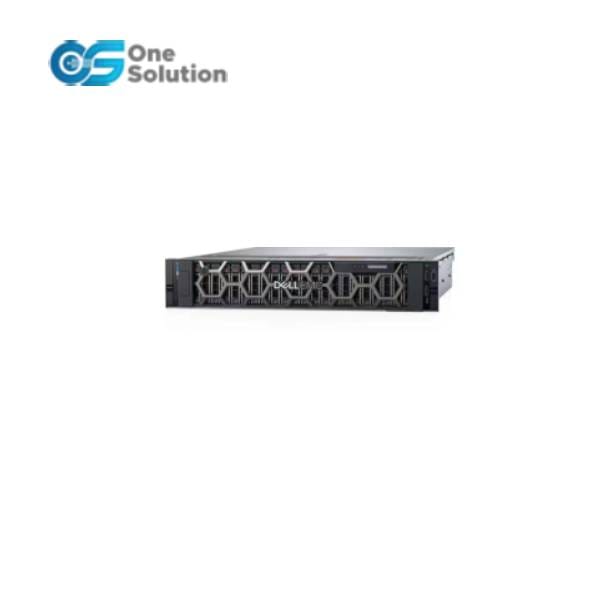

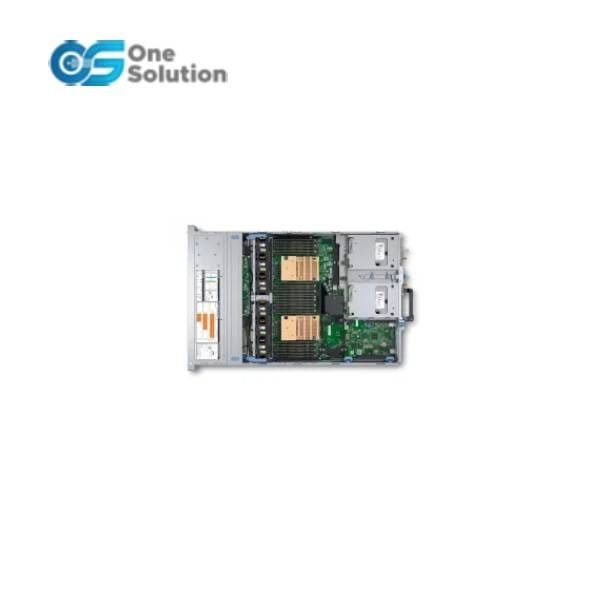

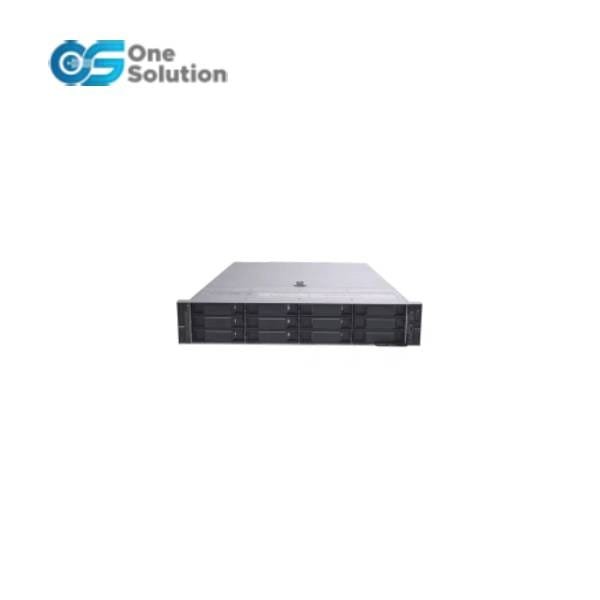

Dell PowerEdge R740xd
? Choose the right
resources to power
your workloads
with NVMe, GPU or
FPGA optionsMaximize performance and capacity
The scalable system architecture behind the R740xd with up to 24 NVMe drives creates the ideal balance between
scalability and performance. The R740xd versatility is highlighted with the ability to mix any drive type to create the
optimum configuration of NVMe, SSD and HDD for either performance, capacity or both. The R740xd is the platform of
choice for software defined storage and is the foundation for ScaleIO, VSAN or the PowerEdge XC.
? Maximize storage performance with up to 24 NVMe drives and ensure application performance scales to meet
demands.
? Free up storage space using internal M.2 SSDs optimized for boot.
? Simplify and accelerate ScaleIO or VMware vSAN? deployments with validated, pre-bundled and tailored Ready
Nodes.
? Accelerate workloads with up to 3 double-width 300W GPUs, up to 6 single-width 150W GPUs or up to 4 FPGAs.
? Choose the right
resources to power
your workloads
with NVMe, GPU or
FPGA optionsMaximize performance and capacity
The scalable system architecture behind the R740xd with up to 24 NVMe drives creates the ideal balance between
scalability and performance. The R740xd versatility is highlighted with the ability to mix any drive type to create the
optimum configuration of NVMe, SSD and HDD for either performance, capacity or both. The R740xd is the platform of
choice for software defined storage and is the foundation for ScaleIO, VSAN or the PowerEdge XC.
? Maximize storage performance with up to 24 NVMe drives and ensure application performance scales to meet
demands.
? Free up storage space using internal M.2 SSDs optimized for boot.
? Simplify and accelerate ScaleIO or VMware vSAN? deployments with validated, pre-bundled and tailored Ready
Nodes.
? Accelerate workloads with up to 3 double-width 300W GPUs, up to 6 single-width 150W GPUs or up to 4 FPGAs.
PowerEdge R740xd Specification
PowerEdge R740xd Specification |
|
| Processor | Up to two 2nd Generation Intel??Xeon??Scalable processors with up to 28 cores per processor |
| Operating System | Canonical? Ubuntu? Server LTS Citrix? Hypervisor ? Microsoft? Windows Server? with Hyper-V Red Hat? Enterprise Linux SUSE? Linux Enterprise Server VMware? ESXi? |
| Memory (RAM) | DIMM Speed Up to 2933MT/sMemory Type RDIMM LRDIMM NVDIMM DCPMM (Intel? Optane? DC persistent memory) Memory Module Slots Maximum RAM |
| Storage | Front Bays Up to 24 x 2.5?? SAS/SSD/NVMe, max 184TB Up to 12 x 3.5?? SAS, max 192TBMid Bay Up to 4 x 3.5?? SAS, max 64TB Up to 4 x 2.5?? SAS/SSD, max 30.72TB Rear Bays |
| Storage Controllers | Internal Controllers: PERC H330, H730P, H740P, HBA330External Controllers (RAID): H840, 12 Gbps SAS HBA Software RAID: Internal Boot: Internal Dual SD Module |
| Power Supplies | 495W Platinum 750W Platinum 750W Titanium 750W 240VDC* 1100W Platinum 1100W 380VDC* 1600W Platinum 2000W Platinum 2400W?Platinum 1100W -48VDC Gold Hot plug power supplies with full redundancy option Up to 6 hot plugs fans with full redundancy |
| Ports | Network Options 4 x 1GbE 2 x 10GbE + 2 x 1bGE 4 x 10GbE 2 x 25GbEFront Ports 1 x Dedicated iDRAC direct USB 2 x USB 2.0 1 x USB 3.0 (optional) 1 x VGA Rear Ports |
| Slots | PCIe 3 PCIe slots: ? 1×8 Gen4 (x16 connector) low profile, half length ? 1×8 Gen4 (x8 connector) low profile, half length ? 1×4 Gen4 (x8 connector) for dedicated PERC only |
| Bezel | Optional LCD bezel or security bezel |
| Form Factor | 2U rack server |
| Dimensions and Weight | |
| Rack Support |
|
