?HPE Aruba JL685A Overview

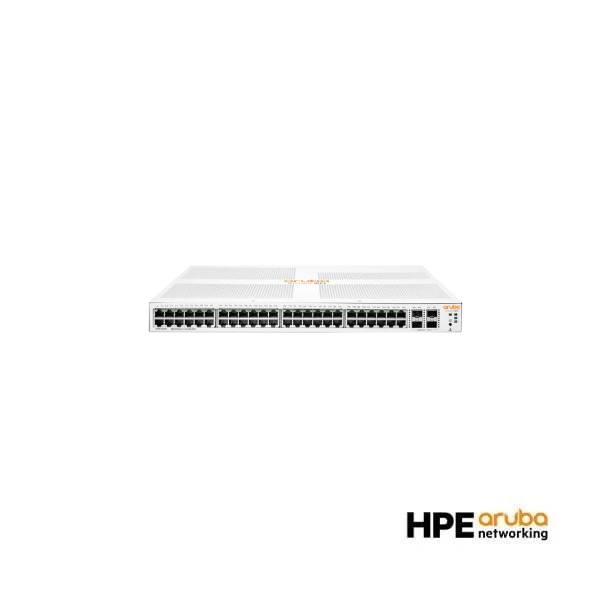

JL685A?is an Aruba Instant On 1930 48G 4SFP/SFP+ Switch. Aruba Instant On 1930 switches features advanced, smart-managed, fixed configuration Gigabit switches designed for small businesses that are easy-to-deploy and affordable. They??re made to handle today??s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance.
| Model | JL685A |
| I/O ports and slots | 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);
Duplex: 10BASET/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP+ 1/10GbE ports |
| Dimension | 17.42(w) x 11.12(d) x 1.73(h) in (44.25 x 28.24 x 4.39 cm) (1U height) |
| Processor and memory | ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB |
| Throughput (Mpps) | 130.95 Mpps |
| Switching capacity | 176 Gbps |
Product Details
Features
(1) Smart-managed layer 2+ Ethernet switch series ready to deploy in 8-, 24- and 48-port for non-PoE and Class 4 PoE (i.e. PoE+) models
(2) PoE to power APs and IoT devices like IP phones, surveillance cameras and door locks
(3) Two dedicated 1G SFP fiber ports on 8-port models, and four dedicated 1G/10G SFP+ fiber ports on 24-/48-port models to eliminate traffic bottlenecks across your network
(4) Security controls let you define access in each area of your network, keeping your business data safe
(5) Convenient mobile app and web-based GUI for set up, management and troubleshooting
?HPE Aruba JL685A Specification
JL685A Specification |
|
| I/O ports and slots | 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);
Duplex: 10BASET/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP+ 1/10GbE ports |
| Dimension | 17.42(w) x 11.12(d) x 1.73(h) in (44.25 x 28.24 x 4.39 cm) (1U height) |
| Processor and memory | ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB |
| Throughput (Mpps) | 130.95 Mpps |
| Switching capacity | 176 Gbps |
| Operating temperature | 32??F to 104??F (0??C to 40??C) |
| Operating relative
humidity |
15% to 95% @ 104??F (40??C) |
| Nonoperating/Storage
temperature |
-40??F to 158??F (-40??C to 70??C) |
| Nonoperating/Storage
relative humidity |
15% to 95% @ 140??F (60??C) |
| Altitude | up to 10,000 ft (3 km) |
| Idle power | 16.8 W |
| PoE | Not Support |
| Power Supply | Internal power supply |
