HPE Aruba JL728A Overview

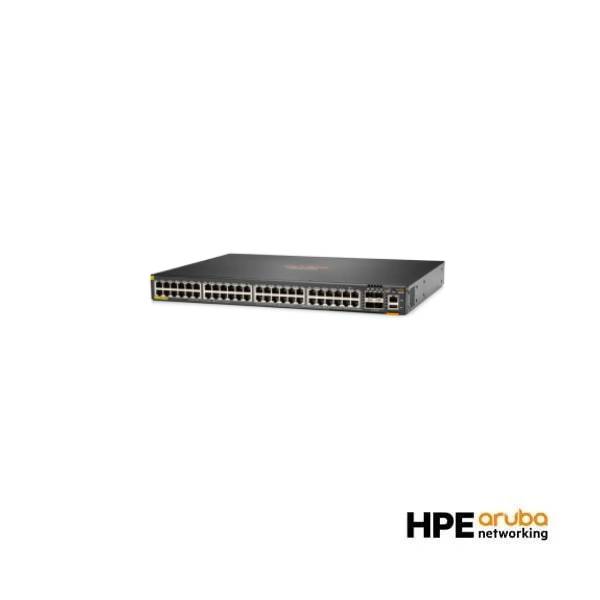

The JL728A is an HPE Aruba 6200F 48G Class4 POE 4SFP+ 740W Switch.
Quick Spec
Table 1 shows the quick spec of the JL728A.
| Product Code | JL728A |
| Manufacturer | HPE Aruba |
| Description | 6200F 48G Class4 PoE 4SFP+ 740W Switch |
Product Features
- ?Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
- ?Scalability with 8 member VSF stacking. 24 and 48-port fixed and modular switch models can stack together for up to 384 ports.
- ?Models include modular switches with 1/10GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10GbE SFP+ or 1GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
- ?Intelligent monitoring and visibility via Aruba Network Analytics Engine. Aruba NetEdit support for automation, configuration and verification. One touch deployment using the Aruba CX Mobile App.
- Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
- ?Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.
HPE Aruba JL728A Specification
JL728A Specifications |
|
| Model | JL728A |
| Product Description | HPE Aruba 6200F 48G Class4 PoE 4SFP+ 740W Switch |
| Ethernet Ports | 48 x Gigabit Ethernet (Class 4 PoE) |
| SFP+ Ports | 4 x 10 Gigabit Ethernet |
| Power over Ethernet (PoE) | 740W |
| Power consumption | 76W at 230 VAC |
| Input voltage | 100V-120V/200V-240V |
| Ports | 48x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth Adapter to be used with Aruba CX Mobile App |
| Latency | 1 Gbps: 2.28 ??Sec 10 Gbps: 1.46 ??Sec |
| Routing/switching capacity | 176 Gbps |
| Stacking capabilities | 8 members |
| Throughput | Up to 130.9 Mpps |
| Memory and processor | Quad Core ARM Cortex? A72 @ 1.8 GHz |
| Power supply name | Fixed power supply (950W) Up to 740W of Class 4 PoE Power |
| PoE capability | 740W |
| Weight | 5.10 kg (11.24 lbs) |
| Dimensions | 4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in) |
