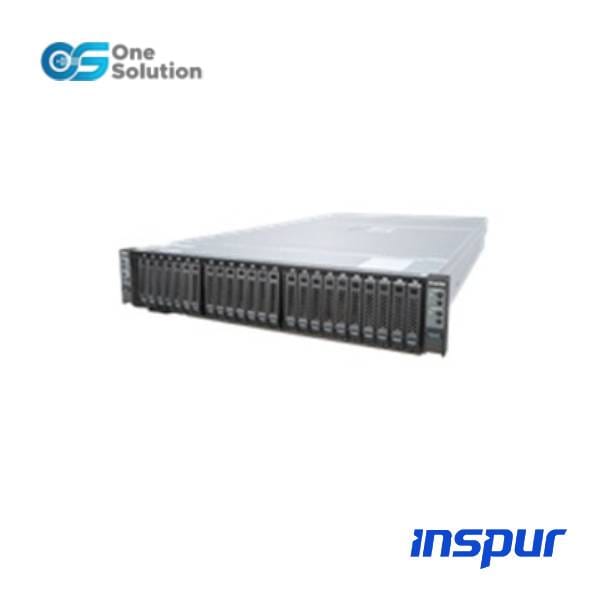

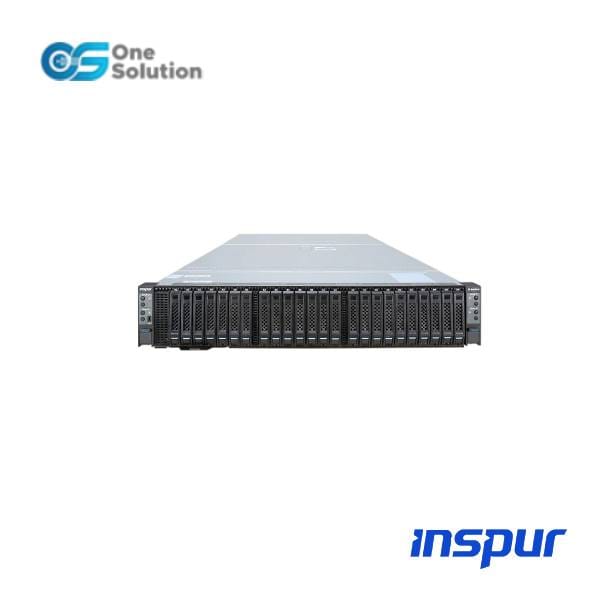

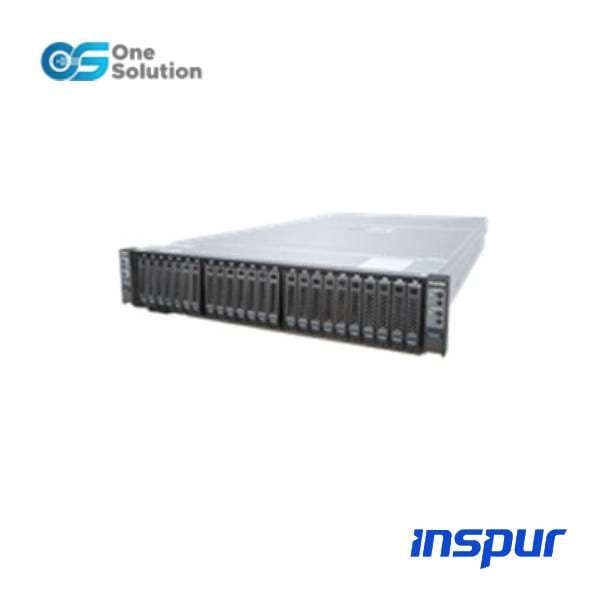

Inspur i24 Server Overview

Inspur introduced computing dense i24 a high-end 2U4N rack-mounted server optimized for brand-new high-density data centers and applications. Extreme performance and ultimate flexible modular based design can meet various flexible demands which are Compute intensive, distributed infrastructure, super converged infrastructure platform and so on. In the limited space, i24 achieves perfect functionalities: high-density, efficiency, reliability and intelligence. Meanwhile, excellent scalability makes it even suitable for virtualization infrastructures, HPC and cloud platforms.

Quick Spec

Table 1 shows the quick spec.

Model	i24 Node
Form Factor	2U
Chipset	Intel C622/624 series chipset
Processor family	2 Intel Xeon Scalable processors
Processor core available	Maximum 28-core per processor
Processor speed	3.6 GHz, maximum depending on processor
Memory slot	16 DIMM slots, Capacity up to 1TB (64G x 16)
Memory type	RDIMMs, LDIMMs and NVDIMM
Memory protection features	ECC
Storage controller	Onboard SATA controller Inspur SAS 3008 (IT/IMR) support RAID 0,1,10,1E,5 Inspur SAS RAID 3108 (RAID 0,1,10,1E,5,6,10,50). 2G/4G cache and SuperCap options. LSI 9361-8i (RAID 0,1,1E,5,6,10,50). 1G/2G cache and SuperCap options.

Product Details

Inspur i24 Server provides these features:

Extreme / World-class Performance

? 8 new generation of Intel Xeon scalable processor

? Supports 2666 MHz speeds based on the memory stick and aggregately achieve up to 4TB memory capacity.

? Allows NVDIMM option which guarantees the better performance of cache node.

? Supports NVMe All-flash SSDs to ensure the maximum front-end access rate.

Flexible Design/Configurations

? Supports 4x 1U 2-socket half-width node (NS5162M5) and each node is connected to the enclosure.

? Supports up to 24SFF or 12 LFF HDD/SSDs

? Supports 12*PCO-E x16 and 4 OCP cards

? Supports 2*2000W high efficiency power supplies

Inspur i24 Server Specification

i24 Node Specification
Form Factor	2U
Chipset	Intel? C622/624 series chipset
Processor family	2 Intel Xeon Scalable processors
Processor core available	Maximum 28-core per processor
Processor speed	3.6 GHz, maximum depending on processor
Memory slot	16 DIMM slots, Capacity up to 1TB (64G x 16)
Memory type	RDIMMs, LDIMMs and NVDIMM
Memory protection features	ECC
Storage controller	Onboard SATA controller Inspur SAS 3008 (IT/IMR) support RAID 0,1,10,1E,5 Inspur SAS RAID 3108 (RAID 0,1,10,1E,5,6,10,50). 2G/4G cache and SuperCap options. LSI 9361-8i (RAID 0,1,1E,5,6,10,50). 1G/2G cache and SuperCap options.
I/O Expansion slot	Up to 3 PCIE slot
Network Controller	Support OCP/PHY, external PCI-E card
MIC	1x independent 1000Mbps NIC for remote control
DVD ROM	Aspeed2500 COD, 64MB video memory, resolution up to 1280*1024
Integrated I/O port	SUV interface board (2x RS-232 + 1x VGA +2x USB 2.0)
Internal Storage	2xSATA M.2 SSDs
Enclosure Specs
Storage	2.5?? NVMe backplane: support 24x hot-swap NVMe HDD/SSDs 2.5?? NVMe+SAS backplane: support 24x hot-swap SAS/SATA/SSD/NVMe HDD/SSDs (up to 4xNVMe SSDs and 2x SAS/SATA HDDs per node) 3.5???backplane: support 12x hot-swap SAS/SATA HDD/SSDs
Power Supply	2000W 80Plus Platinum power supplies Single or Dual Power Supply options Support 100-240V AC or 192-300V DC power supply
Fan	4x80mm system fans in the middle of the enclosure
Dimensions	2.5?? enclosure: 446(W)87.5(H)805(D)mm 3.5?? enclosure: 446(W)87.5(H)845(D)mm
Management	Integrate BMC+CMC and IKVM remote management module compliance to IPMI2.0, supporting KVM over IP, and Redfish
Supported Operating Systems	Linux and Windows
Operating Temperature	5??~35??
Input Voltage	110-240V
