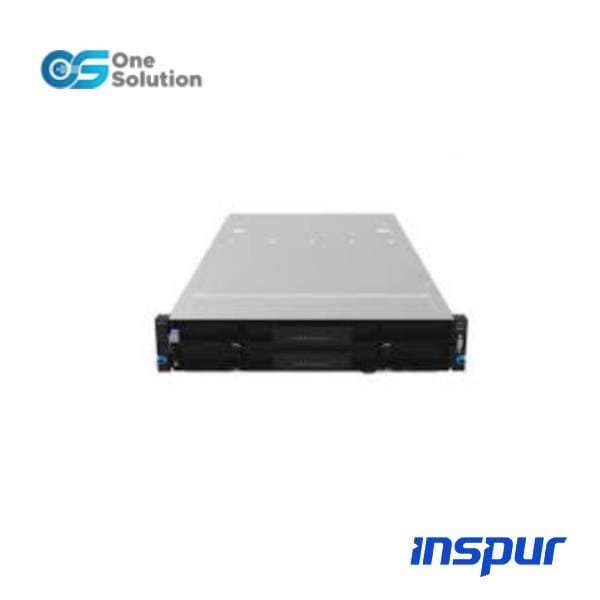

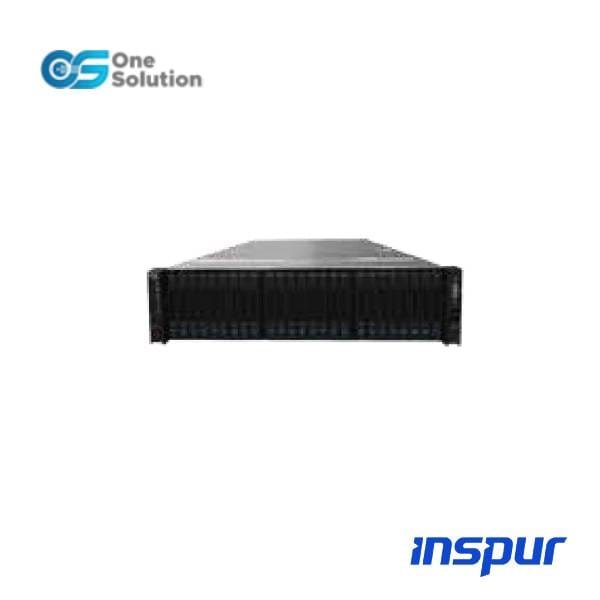

Inspur NF8260M5 Server Overview

Inspur NF8260M5 Server is a high-density, widely flexible, and powerful four socket 2U server which adapts to any demanding enterprise workload with ultra-dense memory design to enhance space efficiency. OCP Accepted NF8260M5 Open Platform, contributed by Inspur and Intel.

Quick Spec

Table 1 shows the quick spec.

Model	NF8260M5
Form Factor	2U rack-mount, 780mm (D)
Processor	Intel Xeon Scalable, two-socket/four-socket, support max. 28 cores
Chipset	Intel C620 series chipset
Memory	12 DIMM slots per processor, 6 channels per processor, 2 DIMM per channel RDIMM, LRDIMM and NVDIMM Max. Capacity (RDIMM): 1.5TB, 48x 32GB @2666 MHz Max. Capacity (LRDIMM): 6.0TB, 48x 128GB @2666 MHz
PCI Slots	Up to 8x standard PCI-E slots and support one optional OCP Mezz

Product Details

Inspur NF8260M5 Server provides these features:

?? OCP Accepted

Jointly contributed by Inspur and Intel

? Scalable 4P Performance in a Dense 2U Form Factor.

Designed for the enterprise, all the power and capacity required to meet business needs.

?? Reliability for Multiple Workloads.

Support for up to two 2000W Power Supplies for increasing redundancy and reducing unnecessary downtime.

?? Flexible Expandability.

Support up to eight PCI-E expansion cards, including graphic processor units and network adapters, offering increased expandability.

Inspur NF8260M5 Server Specification

Inspur NF8260M5 Server Specification
Form Factor	2U rack-mount, 780mm (D)
Processor	Intel? Xeon? Scalable, two-socket/four-socket, support max. 28 cores
Chipset	Intel ? C620 series chipset
Memory	12 DIMM slots per processor, 6 channels per processor, 2 DIMM per channel RDIMM, LRDIMM and NVDIMM Max. Capacity (RDIMM): 1.5TB, 48x 32GB @2666 MHz Max. Capacity (LRDIMM): 6.0TB, 48x 128GB @2666 MHz
PCI Slots	Up to 8x standard PCI-E slots and support one optional OCP Mezz
Internal Storage	?Up to 24x 2.5?? SAS/SATA or 6x NVMe SSD
Ethernet	Integrated LAN controller; up to 4x 10GbE
Power Supply	800W/1300W/1600W/2000W, support 1+1 redundancy
M.2 & SD support	Up to two M.2
