Specifications
| Hardware Specifications | RG-AP180-I |
| 802.11n | Four spatial streams
???Radio 1??C?2.4 GHz: 2×2 MIMO,?two spatial streams ???Radio 2??C?5 GHz:?2×2?MIMO, two spatial streams Channels: ???Radio 1??C 2.4 GHz: 20 MHz?and?40 MHz ???Radio 2 ?C 5 GHz: 20 MHz?and?40 MHz Combined peak data rate: 600?Mbps ???Radio 1??C 2.4 GHz:?6.5 Mbps to?300 Mbps (MCS0 to MCS15 ) ???Radio 2 ?C 5 GHz:?6.5 Mbps?to?300 Mbps (MCS0?to?MCS15) Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM) Modulation types: BPSK, QPSK, 16-QAM, 64-QAM Packet aggregation: ???Aggregate MAC Protocol Data Unit (A-MPDU) ???Aggregate MAC Service Data Unit (A-MSDU) Dynamic Frequency Selection (DFS) Cyclic Delay/Shift Diversity (CDD/CSD) Maximum Ratio Combining (MRC) Space-Time Block Coding (STBC) Low-Density Parity Check (LDPC) Transmit beam-forming (TxBF) |
| 802.11ac | Two spatial streams
???Radio 2??C?5 GHz:?2×2 MIMO, two spatial streams Channels: ???Radio 2??C?5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz Combined peak data rate: 1.733?Gbps ???Radio 2??C?5 GHz: 6.5 Mbps to?1.733?Gbps (MCS0 to?MCS9) Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM) Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM Packet aggregation: ???Aggregate MAC Protocol Data Unit (A-MPDU) ???Aggregate MAC Service Data Unit (A-MSDU) Dynamic Frequency Selection (DFS) Cyclic Delay/Shift Diversity (CDD/CSD) Maximum Ratio Combining (MRC) Space-Time Block Coding (STBC) Low-Density Parity Check (LDPC) Transmit beam-forming (TxBF) |
| 802.11ax | Four spatial streams
???Radio 1??C?2.4 GHz:?2×2 uplink/downlink MU-MIMO,?two spatial streams ???Radio 2??C?5 GHz:?2×2?uplink/downlink MU-MIMO, two spatial streams Channels: ???Radio 1??C?2.4 GHz: 20 MHz?and?40 MHz ???Radio 2??C?5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz Combined peak data rate: 2.976?Gbps: ???Radio 1??C?2.4 GHz: 8.6 Mbps to?0.574 Gbps (MCS0 to?MCS11) ???Radio 2??C?5 GHz: 8.6 Mbps to?2.402?Gbps (MCS0 to?MCS11) Radio technologies:?uplink/downlink Orthogonal Frequency-Division Multiple Access (OFDMA) Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM Packet aggregation: ???Aggregate MAC Protocol Data Unit (A-MPDU) ???Aggregate MAC Service Data Unit (A-MSDU) Dynamic Frequency Selection (DFS) Cyclic Delay/Shift Diversity (CDD/CSD) Maximum Ratio Combining (MRC) Space-Time Block Coding (STBC) Low-Density Parity Check (LDPC) Transmit beam-forming (TxBF) WPA3 |
| Antenna | Wi-Fi
???2.4 GHz: two?built-in omnidirectional antennas, with peak antenna gain of 5.2 dBi. ???5 GHz: two?built-in omnidirectional antennas, with peak antenna gain of 6 dBi. Bluetooth ???One onboard omnidirectional antenna, with peak antenna gain of 2.4 dBi |
| Port | Uplink: 1 x 100/1000/2.5GBase-T port, compliant with IEEE 802.3af/at standard (PoE/PoE+).

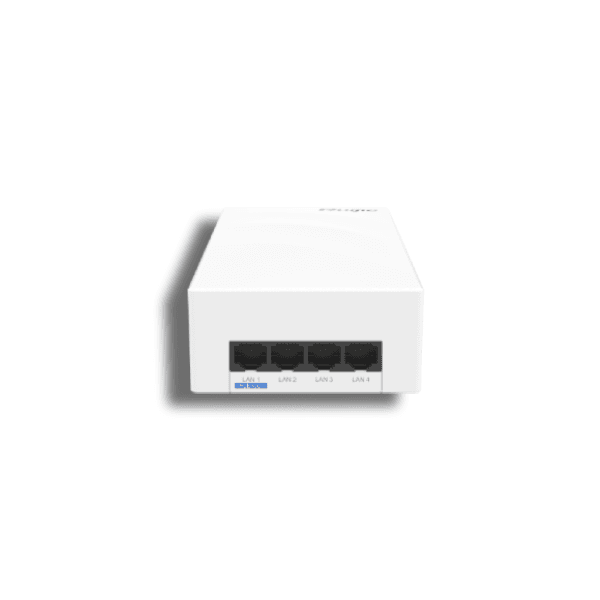

Downlink: 4 x 10/100/1000Base-T ports, LAN 1 supports 48 V/10 W power supply to an attached device. 1 x micro USB?console port 1?x Bluetooth 5.1 |
| Status LED | 1 x multi-color system status LED
???AP power-on status ???Software initialization status and upgrade status ???Uplink service interface status ???CAPWAP tunnel?timeout ???Specific AP?locating |
| Button | 1 x Reset button
???Press the button for shorter than 2 seconds. Then the device restarts. ???Press the button for longer than 5 seconds. Then the device restores to factory settings. |
| Dimensions (W x H x D) | Main unit:?86 mm x 170 mm x 43 mm (3.39 in. x 6.69 in. x 1.69 in.)
Shipping:?187 mm x?104 mm x?69 mm (7.37 in. x 4.10 in. x 2.72 in.) |
| Weight | Main unit: 0.3 kg (0.66 lbs)
Mounting bracket: 0.1 kg (0.22 lbs) Shipping: 0.54 kg (1.19 lbs) |
| Mounting | Junction box-mount (86 mm/American-standard/European-standard junction box)
Wall-mount (delivered with a mounting bracket) |
| Lock option | Kensington lock |
| Input power supply | The AP supports the following two power supply modes:
???48 V DC/0.6 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power supply needs to be purchased independently. ???PoE input over the backplane interface: compliance with 802.3af/at standard (PoE/PoE+) Note: ???When powered by 802.3at (PoE+), the AP operates with the optimal performance. ???If both DC power and PoE are available, DC power is preferred. |
| Maximum power consumption | Maximum power consumption: 25 W
???DC?power:?25?W, 2.4 GHz radio 2×2,?5 GHz radio 2×2, LAN 1?for PoE supply ???802.3at (PoE+): 25?W, 2.4 GHz radio 2×2,?5 GHz radio 2×2, LAN 1?for PoE supply ???802.3af (PoE): 15?W, 2.4 GHz radio 2×2,?5 GHz radio 2×2, LAN 1?port that fail to provide power for external devices (PoE out disabled of LAN 1 port disabled) ???Idle mode: 8?W |
| Environment | Storage temperature: ?C40??C to +70??C (?C40??F to +158??F)
Storage humidity: 5% RH to 95% RH (non-condensing) Storage altitude: 0 m to 3,000 m (0 ft. to 9,842.52 ft.) Operating temperature: 0??C to +40??C (32?H~104?H) Operating humidity: 5% RH to 95% RH (non-condensing) Operating altitude: 0 m to 3,000 m (0 ft. to 9,842.52 ft.) Note: At an altitude in the range of 1,800?C3,000 m (5,905.51?C9,842.52 ft.), every time the altitude increases by 166 m (544.62 ft.), the maximum temperature decreases by 1??C (1.8??F). |
| Mean Time Between Failure (MTBF) | 200,000 hours (22 years) at the operating temperature of 25??C (77??F) |
| System memory | 512 MB DRAM,?128 MB flash |
| Transmit power | 2.4 GHz
???Maximum?transmit power: 20 dBm (100 mW) 5 GHz ???Maximum?transmit power: 20 dBm (100 mW) Note: ???Adjusting the transmit power by percentage (recommended) and in 1dBm increments. ???The transmit power is limited by local regulatory requirements.?For details, see?WLAN Country or Region Codes and Channel Compliance. |
