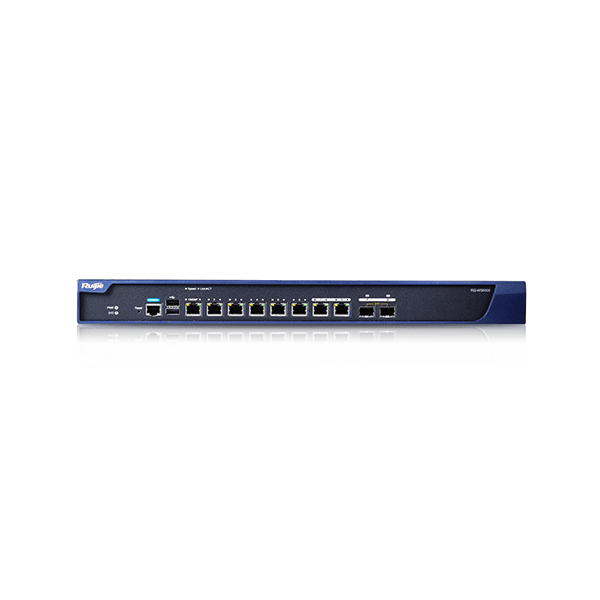

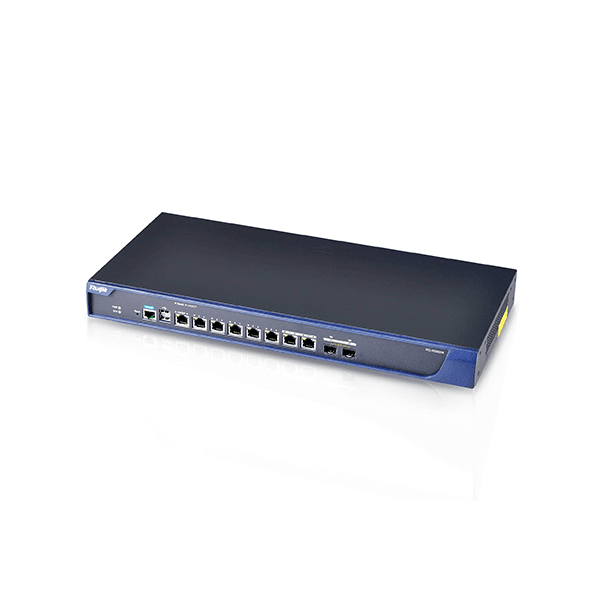

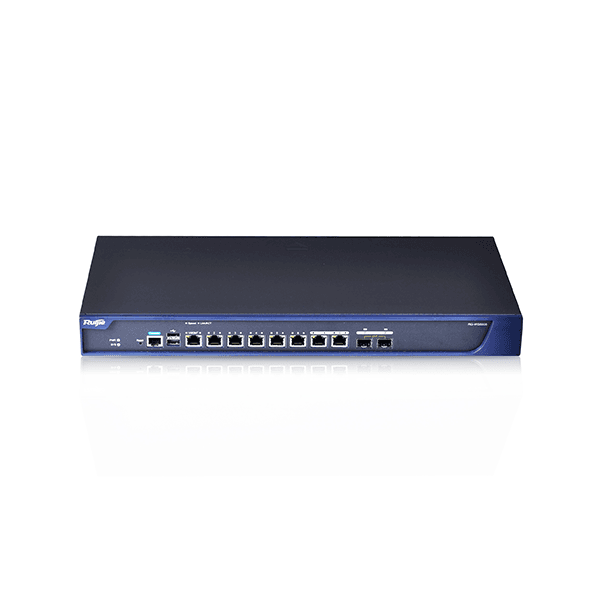

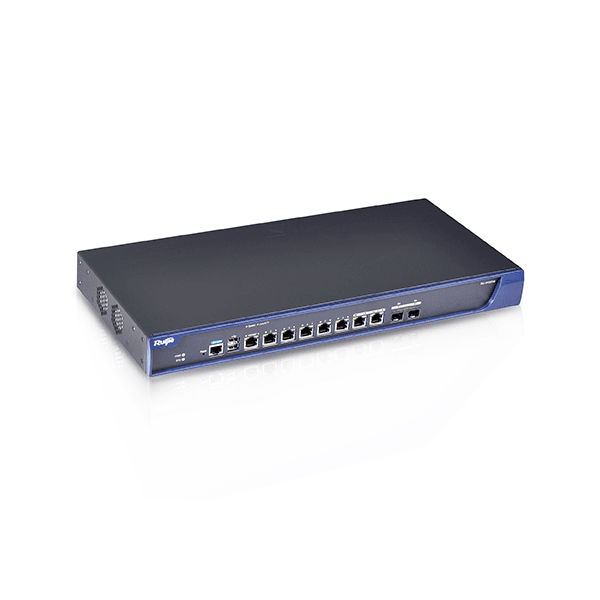

? Ruijie RG-WS6008 Specifications
table 1:? ? ?v
| Dimensions and Weight | RG-WS6008 |
| Unit?dimensions (W x D x H) | 440 mm x 200 mm x 43.6 mm (17.32 in.?x 7.87 in. x 1.72 in.) |
| Shipping dimensions(W x D x H) | 560 mm x 470 mm x 380 mm (22.05 in. x 18.5 in. x 14.96 in.) |
| Rack height | 1 RU |
| Unit weight | 2.9?kg?(6.39 lbs) |
| Shipping weight | 16.47 kg (36.31 lbs) |
| Ports | RG-WS6008 |
| Fixed service port | 6 x 10/100/1000BASE-T ports
2 x 1GE SFP/RJ45 combo ports |
| Fixed management port | 1 x RJ45 console port
2 x USB ports |
| Status LED | 1 x system status LED
1 x power status LED 10 x service port LEDs |
| Button | 1 x Reset button
???Press the button for shorter than 3 seconds. Then the device restarts. ???Press the button for longer than 3 seconds. Then the device restores to factory settings. 1 x power switch |
| Power Supply and Consumption | RG-WS6008 |
| Maximum power consumption | 40 W |
| Input power supply | 1 x 40 W built-in power module |
| Input voltage | 100 V AC to 240 V AC, 50 Hz to 60 Hz |
| Input current | 1.5 A (maximum RMS current) |
| Output voltage | 12 V/3.33 A |
| Environment and Reliability | RG-WS6008 |
| Temperature | Operating temperature: 0??C to 45??C (32??F to 113??F)
Storage temperature: ?C40??C to +70??C (?C40??F to +158??F) Note: At an altitude in the range of 3,000?C5,000 m (9,842.52?C16,404.20 ft.), every time the altitude increases by?166 m (544.62 ft.), the maximum temperature decreases by 1??C (1.8??F). |
| Altitude | Operating altitude: 0 m to 3,000m (0 ft. to 9,842.52 ft.)
Storage altitude: 0 m to 3,000m (0 ft. to 9,842.52 ft.) |
| Humidity | Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
| Fan | Fan speed adjustment
Fan fault alarm |
| Acoustic noise | < 78 dB |
| Mean Time Between Failure (MTBF) | 200,000 hours (22 years) at the operating temperature of 25??C (77??F) |
Software Specifications |
RG-WS6008 |
| WLAN | |
| Default number of manageable APs | 32
Note: The default number of APs that can be managed by the RG-WS6008 is subject to the AP model. See the Ordering Information for details. |
| Maximum number of configurable APs | 2,048 |
| Maximum number of manageable APs | 448
Note: The maximum number of APs that can be managed by the RG-WS6008 is subject to the AP model. See the Ordering Information for details. |
| Maximum number of manageable STAs | 7,168
Note: The maximum number of STAs that can be managed by the RG-WS6008 is subject to the network environment. Contact technical support team for details. |
| WLAN service | Maximum number of WLAN IDs: 2,048
Maximum number of associated STAs per WLAN: 7,168 |
| Intra-AC roaming handoff time | < 50 ms |
| Maximum number of virtualized ACs | 4 |
| Number of concurrent CAPWAP data channels | 2,688 |
| Routing and Switching | |
| Number of MAC address entries | 32,768 |
| Number of VLANs | 4,096 |
| Number of ARP entries | 32,768 |
| DHCP address pools | Number of IPv4 address pools: 2,000
Number of IPv4 addresses: 24,576 Number of IPv6 address pools: 256 Number of IPv6 addresses: 2,048 |
| Number of routing entries | IPv4 routing entries: 8,192
IPv6 routing entries: 10,000 |
| Number of multicast entries | Static routing entries: 2,048
Multicast group routing entries: 4,096 |
| Security and Authentication | |
| Maximum number of STAs supported by the built-in Portal server | 1,500 |
| Number of ACL entries | 65,536 |
| Applicable Software Version | RG-WS6008 |
| Applicable software version | RGOS11.9(6)W1B1 or later |
| WLAN | RG-WS6008 |
| IEEE 802.11 protocols | 802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11v, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac, and 802.11ax |
| CAPWAP | Layer 2 and Layer 3 topology between an AP and an AC
An AP can automatically discover the accessible AC. An AP can be automatically upgraded through the AC. An AP can automatically download the configuration file from the AC. CAPWAP through NAT |
| Roaming | Intra-AC Layer 2 or Layer 3 roaming
Inter-AC Layer 2 or Layer 3 roaming |
| Forwarding mode | Centralized forwarding
Local forwarding Service-based flexible forwarding |
| Wireless QoS | AP/WLAN/STA-based rate limiting
(WLAN/STA-based rate limit range: 8-261,120?in the unit of 8 Kbps. For example, if you set the value to 8, the rate limit is 8 x 8 Kbps = 64 Kbps.) Static and intelligent rate limiting based on STA quantity Fair scheduling |
| User isolation | AC-based user isolation
AP-based user isolation WLAN-based user isolation |
| Reliability | AC virtualization
AC failover Multi-AC hot standby (1+1 A/A and A/S hot standby, and N+1 hot standby) Multi-AC cluster (N-to-N) Remote intelligent perception technology (RIPT) Non-stop service during upgrade |
| STA management | Access control based on the number of STAs associated with the AP
Access control based on the number of STAs associated with the SSID Balanced access control based on the number of STAs associated with the AP Balanced access control based on the AP traffic Band steering Configuration of the RSSI threshold in dB (Range: 0-100) Configuration of the STA idle timeout period in seconds (range: 60-86,400) |
| WLAN optimization | Adjustment of the transmit power for beacon packets or probe responses |
| RF management | Country or region code setting
Manual setting of the transmit power Automatic setting of the transmit power Manual setting of the operating channel Automatic setting of the operating channel Automatic adjustment of the data rate Coverage hole compensation AP load balancing based on traffic and STA quantity Band selection Radio Frequency Interference (RFI) detection and mitigation |
| Security | RG-WS6008 |
| IPv4 security authentication | Web authentication
802.1X authentication MAB authentication SMS authentication |
| IPv6 security authentication | Web authentication |
| IEEE 802.11 security and encryption | Multi-SSID mode
SSID hiding IEEE 802.11i-compliant PSK authentication WPA and WPA2 WPA3: WPA3-Personal (SAE), WPA3-Enterprise (CCMP, 128-bit), and WPA3-Enterprise (GCMP, 192-bit) WEP (WEP/WEP128) TKIP CCMP Anti-ARP spoofing |
| CPP | Supported |
| NFPP | Supported |
| WIDS | Supported |
| AP virtualization | Supported |
| Protocols | RG-WS6008 |
| IPv4 protocols | Ping and traceroute
DHCP server, DHCP client, DHCP relay, and DHCP snooping DNS client NTP Telnet TFTP server and TFTP client FTP server and FTP client |
| IPv6 protocols | DNSv6 client
DHCPv6 relay and DHCPv6 server TFTPv6 client FTPv6 server and FTPv6 client IPv6 CAPWAP ICMPv6 IPv6 ping Manual tunnels and automatic tunnels Manually configured IP addresses and automatically created local addresses IPv6 traceroute |
| IPv4 routing | Static routing, RIP, and OSPF |
| IPv6 routing | Static routing |
| Management | RG-WS6008 |
| Network management | SNMP v1/v2c/v3
RMON Syslog |
| Network management platform | Eweb
Ruijie Cloud Wi-Fi heat map |
| User access management | Console port login, Telnet login, SSH login, and FTP upload |
| Regulatory Compliance | RG-WS6008 |
| Safety regulations | IEC 62368-1, EN 62368-1 |
| EMC regulations | EN 55032, EN 55035,?EN 61000-3-3,?EN IEC 61000-3-2, and ETSI EN 300 386 |
