Description

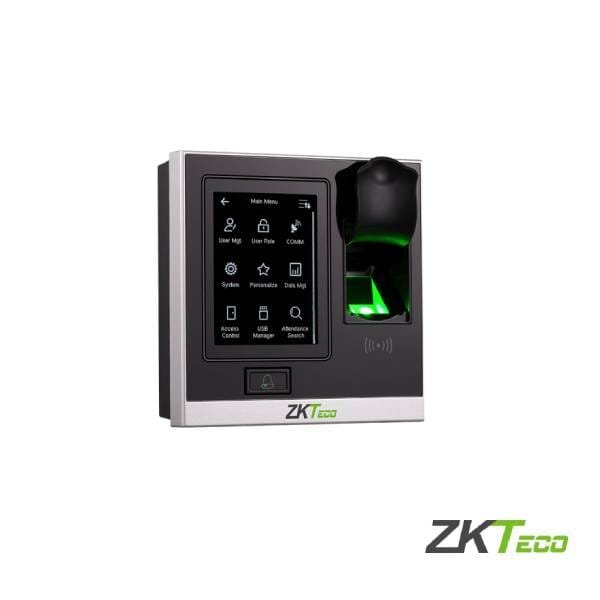

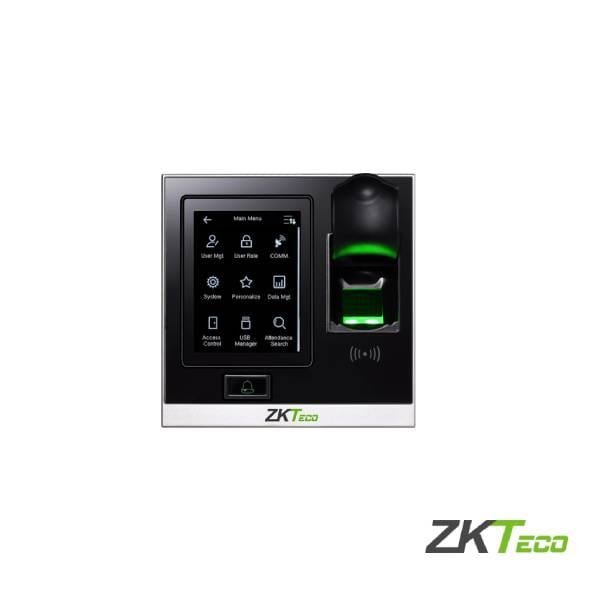

ZKTeco SF400 IP-based fingerprint
The ZKTeco SF400 is an IP-based fingerprint terminal designed for both access control and time attendance applications. It operates in both networked and standalone modes, offering flexibility for various organizational needs.
Key Features:
-
2.8-Inch Touch Screen: The device features a capacitive touch screen with a graphical user interface, facilitating easy operation.
-
Fingerprint and Card Capacity: It supports up to 1,500 fingerprint templates and an optional 5,000 ID cards (EM/Mifare), accommodating a substantial number of users.
-
Communication Options: Equipped with TCP/IP and USB Host interfaces, the SF400 ensures seamless data transfer and connectivity.
-
Access Control Interfaces: The terminal includes interfaces for electric locks, door sensors, alarms, exit buttons, and doorbells, enhancing its versatility in security setups.
-
Wiegand Support: With Wiegand input and output, the SF400 can function as a slave reader or integrate with third-party controllers, providing flexible installation options.
-
Auxiliary Input: This feature allows connection to external devices like smoke detectors or emergency switches. When activated, the system can trigger alarms and unlock doors in emergencies.
-
Tamper-Proof Switch and Alarms: The device is equipped with a tamper-proof switch and multiple alarm outputs to enhance security.
ZKTeco SF400? Specifications
| Feature | Specification |
|---|---|
| User Capacity | – Fingerprints: 1,200 – Cards: 10,000 |
| Transaction Capacity | 100,000 logs |
| Display | 2.8-inch TFT LCD |
| Fingerprint Sensor | ZK Optical Sensor |
| Communication | – TCP/IP – RS485 – USB Host |
| Card Reader | EM/Mifare (Optional) |
| Wiegand Interface | – Input: Supported – Output: Supported |
| Auxiliary Interfaces | – Input: 1 – Output: 1 |
| Door Sensor | 1 |
| Alarm | – Tamper Alarm – Door Sensor Alarm |
| Power Supply | 12V DC, 1.5A |
| Operating Conditions | – Temperature: 0??C to 45??C – Humidity: 20% to 80% |
| Dimensions | 88 x 88 x 33 mm (L x W x D) |
| Weight | Approximately 0.5 kg |
| Access Control Features | – Time Zones – Group Access Control – Anti-Pass back |
